Diamond Switchboard Insulative/Non-Conductive Mat

Your Price Starting At $89.24
In Stock
Your Price Starting At $89.24

  • SKU NT-831
  • Product Type:Non-Conductive Mat
  • Color:Black, Black/Yellow
Request A Quote
Custom Mat Sizes Available

Mat Description: View More Info

Insulative/Non-Conductive

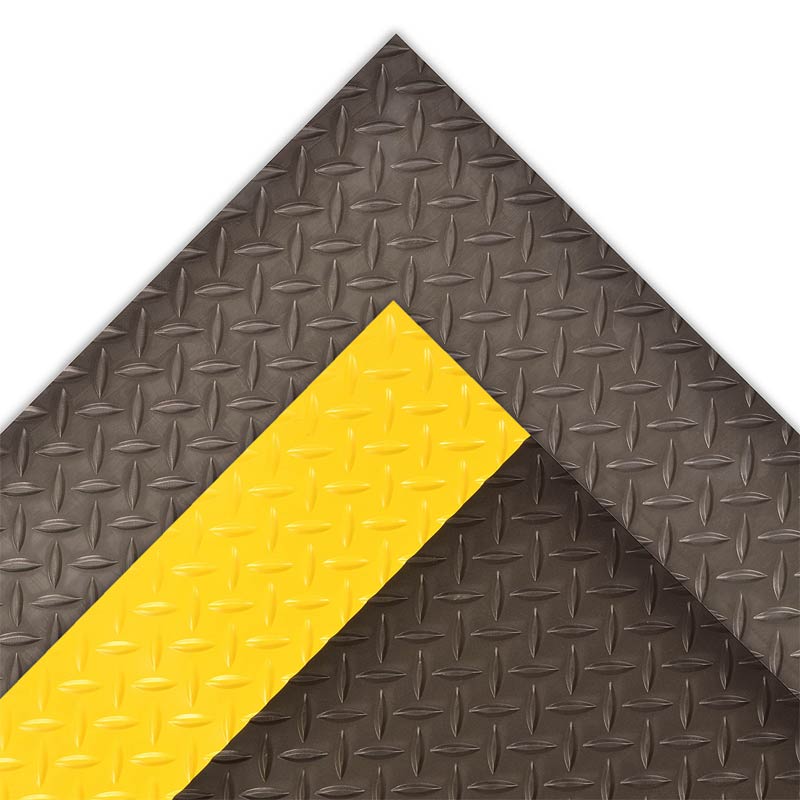

  • Diamond plate design provides increased traction
  • Provides insulation to the worker from being grounded
  • Prevents electrical shock
  • Tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds:
    • Type 2 Compound: Polyvinyl Chloride
    • Class 2 Di-electirc Strength: 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 17,000 volts
  • Recommended to replace the mat every 12 months for optimum performance

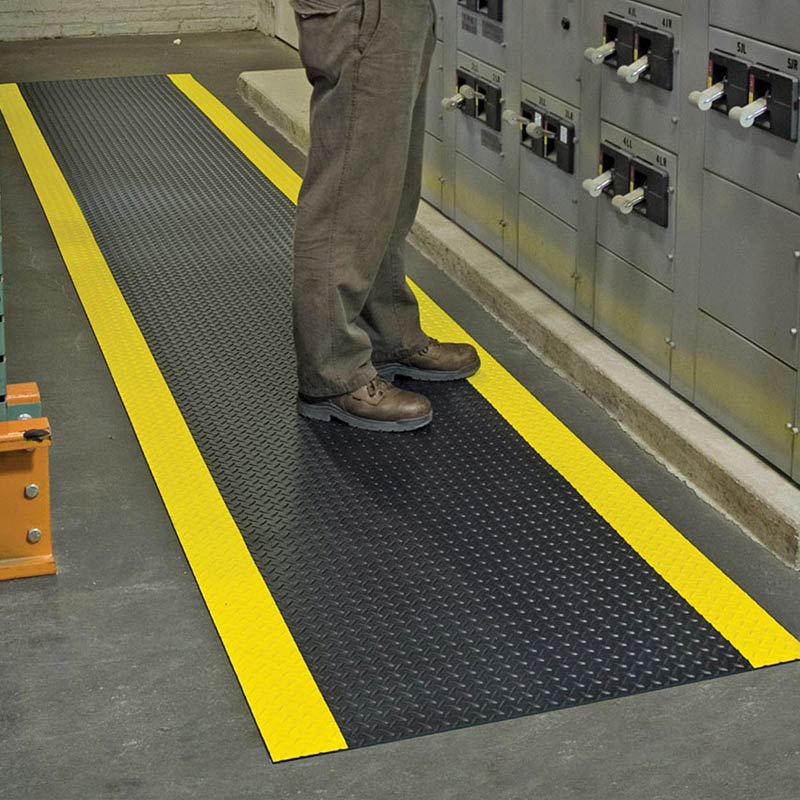

  • Ideal in front of high voltage boxes, electrical fuse boxes, and transformers
  • Custom Option Available in 2’, 3’, 4’ widths up to 75 feet. Call 224-654-6500 or email sales@floormatshop.com for a quote
   Made in USA

Note:  Sizes are approximate: Floor mats will measure slightly smaller in size due to the natural curing process after manufacturing.
  • Available Sizes (Approximate)
  • Your Discounted Prices

Full Specifications

Features:
  • Each sq. ft. is tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds the following:
    • Type 2 Compound: Polyvinyl Chloride
    • Dielectric Strength: 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 3,000 volts

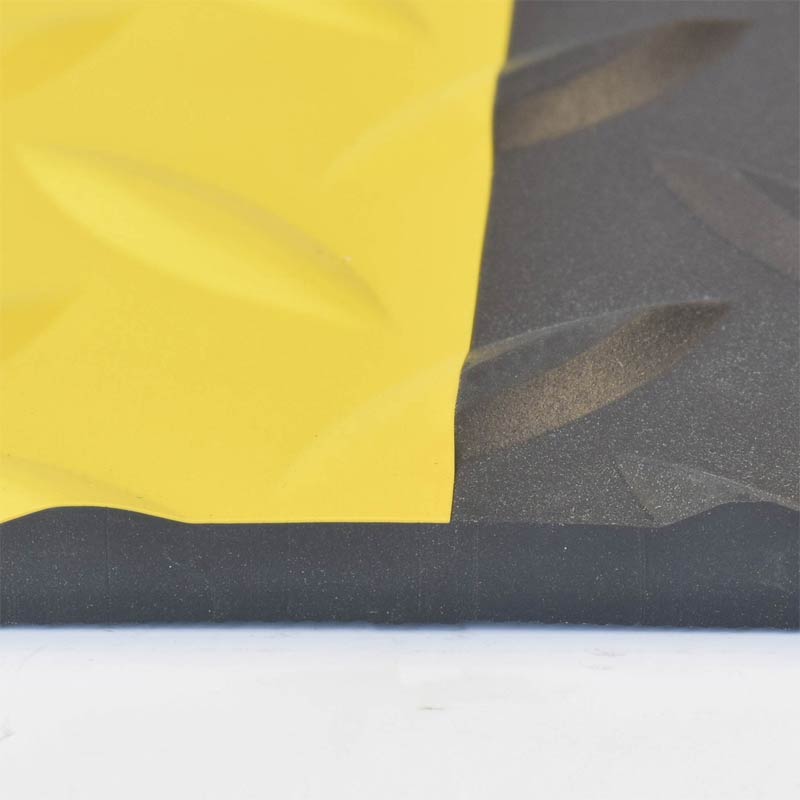

  • Overall Thickness: 3/16”
  • Weight: 1.70 lbs sq./ft.
Product Testing:

All testing of Notrax floor matting has been performed by an independent testing laboratory

  • Passes voltage, dielectric strength, and flexibility tests
  • Tensile Strength ASTM-D412 DIE C – 2505 PSI
  • Ultimate Elongation ASTM-D412 DIE C – 283%
  • Flame Resistance MIL-STD-1623 – 1.9”/4.0 Minutes
  • Dimensional Stability Test ASTM D1204 – 0.04 in./ft.
  • Hardness ASTM D2240-02 – 91

Additional Info

Insulative/Non-Conductive
  • Diamond plate design provides increased traction
  • Provides insulation to the worker from being grounded
  • Prevents electrical shock
  • Tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds:
    • Type 2 Compound: Polyvinyl Chloride
    • Class 2 Di-electirc Strength: 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 17,000 volts
  • Recommended to replace the mat every 12 months for optimum performance
  • Ideal in front of high voltage boxes, electrical fuse boxes, and transformers
  • Custom Option Available in 2’, 3’, 4’ widths up to 75 feet. Call 224-654-6500 or email sales@floormatshop.com for a quote
   Made in USA
