Switchboard Insulative / Non-Conductive Mat

Your Price Starting At $931.88
Your Price Starting At $931.88

  • SKU NT-830
  • Product Type:Non-Conductive Mat

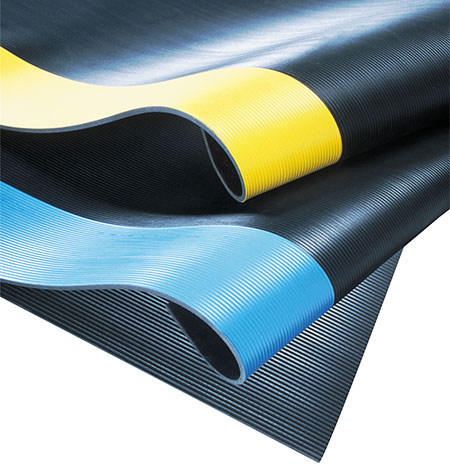

  • Color:Black, Black/Blue, Black/Yellow
Request A Quote
Custom Mat Sizes Available

Mat Description: View More Info

Insulative/Non-Conductive

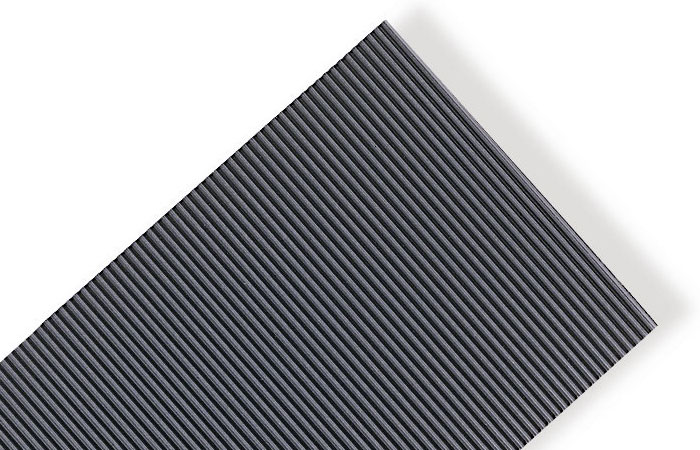

  • Corrugated saw-tooth top surface provides increased traction
  • Provides insulation to the worker from being grounded
  • Prevents electrical shock
  • Tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds:
    • Type 2 Compound: Polyvinyl Chloride
    • Class 2 Di-electirc Strength: 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 17,000 volts
  • Recommended to replace the mat every 12 months for optimum performance

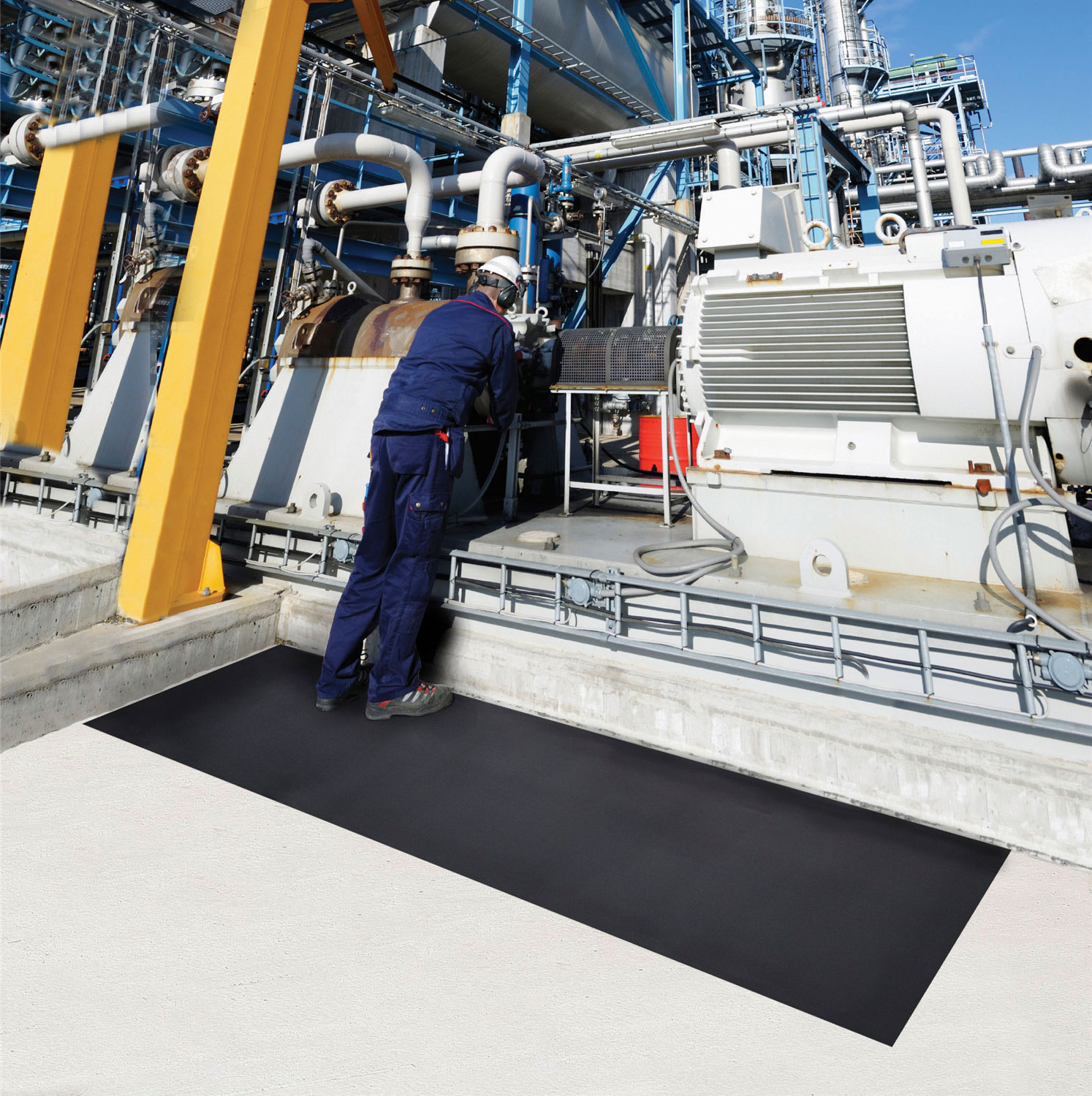

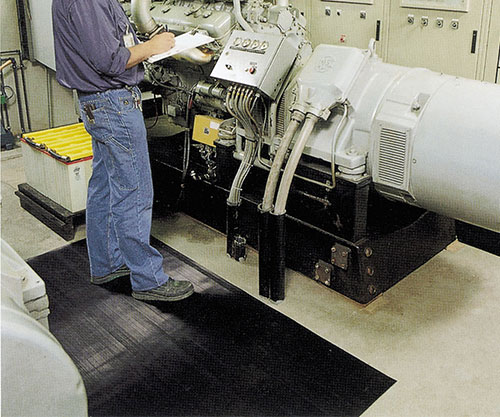

  • Ideal in front of high voltage boxes, electrical fuse boxes, and transformers
  • Custom Option Available in 2’, 3’, 4’ widths up to 75 feet. Call 224-654-6500 or email sales@floormatshop.com for a quote

  Test                                                                  Specifications                                                                 *Results

Oil Resistance - ASTM D471 Max. Volume Increase 4% 1.209%
Electrical Proof Test - ASTM D178  Min. 20,000V for 1 Minute  Pass
Dielectric Breakdown Test - ASTM D149  Min. 30,000V  Pass
O3 Resistance Test Method B ASTM D178  Any Visual Degradation  Pass
Tensile Strength - ASTM D412 DIE C  Min. 700 PSI  1362 PSI
Elongation - ASTM D412 DIE C  Min. 250%  280%
Tension Set - ASTM D412 DIE B  Max. 0.50 In  0.459 In.
Moisture Absorption - ASTM D570  Max. Increase 3%  0.0965%
Accelerated Aging - ASTM D573  Min. 50% of Original Tensile Strength  1327 PSI (97%)
Flame Resistance - ASTM D178  Max. 0.5 In. / 12.7 mm After 30 sec  0.154 mm/s
   Made in USA

Note:  Sizes are approximate: Floor mats will measure slightly smaller in size due to the natural curing process after manufacturing.
  • Available Sizes (Approximate)
  • Your Discounted Prices
SIZE - Click To SelectQty. 1PriceNormally:
2' x 75' - Black - Roll $931.88$1,118.26
3' x 75' - Black - Roll $1,141.88$1,370.26
4' x 75' - Black - Roll $1,863.75$2,236.50
3' x 75' - Black/Yellow - Roll $1,397.82$1,677.38

Full Specifications

Features:
  • Each sq. ft. is tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds the following:
    • Type 2 Compound: Polyvinyl Chloride
    • Dielectric Strength: Min. 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 17,000 volts
  • Overall Thickness: 1/4”
  • Weight: 1.70 lbs sq./ft.

Additional Info

Insulative/Non-Conductive
  • Corrugated saw-tooth top surface provides increased traction
  • Provides insulation to the worker from being grounded
  • Prevents electrical shock
  • Tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds:
    • Type 2 Compound: Polyvinyl Chloride
    • Class 2 Di-electirc Strength: 30,000 volts
    • Proof test of 20,000 volts
    • Recommended maximum usage of 17,000 volts
  • Recommended to replace the mat every 12 months for optimum performance
  • Ideal in front of high voltage boxes, electrical fuse boxes, and transformers
  • Custom Option Available in 2’, 3’, 4’ widths up to 75 feet. Call 224-654-6500 or email sales@floormatshop.com for a quote

  Test                                                                  Specifications                                                                 *Results

Oil Resistance - ASTM D471 Max. Volume Increase 4% 1.209%
Electrical Proof Test - ASTM D178  Min. 20,000V for 1 Minute  Pass
Dielectric Breakdown Test - ASTM D149  Min. 30,000V  Pass
O3 Resistance Test Method B ASTM D178  Any Visual Degradation  Pass
Tensile Strength - ASTM D412 DIE C  Min. 700 PSI  1362 PSI
Elongation - ASTM D412 DIE C  Min. 250%  280%
Tension Set - ASTM D412 DIE B  Max. 0.50 In  0.459 In.
Moisture Absorption - ASTM D570  Max. Increase 3%  0.0965%
Accelerated Aging - ASTM D573  Min. 50% of Original Tensile Strength  1327 PSI (97%)
Flame Resistance - ASTM D178  Max. 0.5 In. / 12.7 mm After 30 sec  0.154 mm/s
   Made in USA
